How to guide: Changing the engine oil on your 4.0L Toyota Tacoma.

Parts List:

Parts List

Vehicle			Repair ID			Kohlibuilt.com
2005 - 2018 Toyota Tacoma, 4.0L v6 - 2nd Gen			Engine Oil Change and Filter Replacement			Kohlibuilt.com
Required Parts
Item	PN:	Qty.	Mfr.	Vendor A	Vendor B	Notes
5W-30 Synthetic Motor Oil	ASLQT	6	AMSOIL	AMSOIL		Formulated, blended and packaged in the U.S.A
Oil Filter	EA15K51-EA	1	AMSOIL	AMSOIL		Made in U.S.A
Engine Oil Drain Plug Gasket	095-156	1	DORMAN	NAPA	O'Reilly Auto Parts
Standard Tools
Item	PN:	Qty.	Mfr.	Vendor A	Vendor B	Notes
Oil Filter Pliers	209	1	CHANNELLOCK	Acme Tools	JB Tools	Made in U.S.A
Drain Container	42003	1	Hopkins	O'Reilly Auto Parts		Made in U.S.A
Brake Caliper Press	279	1	Lang Tools	JB Tools	NAPA	Made in U.S.A
Optional Supplies
Item	PN:	Qty.	Mfr.	Vendor A	Vendor B	Notes
Safety Absorbent Mats
↪ Full Roll	MAT2601	1	New Pig	NAPA	JB Tools	Made in U.S.A
↪ 3 Pack Pads	MAT25306	1	New Pig	NAPA	JB Tools	Made in U.S.A

Photos:

Procedure:

DISCLAIMER:

In the performance of repairs and maintenance, the methodology set out in this technical manual is highly effective. However, this technical manual should not be regarded as the substitute for a qualified technician. Severe injury, damage or loss could occur if only this technical manual is relied upon by inexperienced or unqualified technicians.

Although every effort has been made to ensure that the information provided in this technical manual is accurate, KohliBuilt.com and the authors are not responsible for any loss, damage or injury which may result from the information supplied.

Engine Oil Replacement Reminder Light (MAINT REQD) [1]

For vehicles sold in the U.S.A., the light serves as a reminder to replace the engine oil and illuminates briefly when the ignition is turned to ON
After the maintenance light is reset, the system begins counting mileage toward the 4,500‑mile and 5,000‑mile reminders.
4,500 miles: Light illuminates for 3 seconds then flashes for 12 seconds at ignition ON.
5,000 miles: Light illuminates at ignition ON and stays ON.

Manufacturer's Recommendations [1]

Viscosity: SAE 5W- 30
4.0L V6 — 1GR-FE engine oil capacities:
- Two-wheel drive models (except PreRunner)
  - With filter: 4.8 US qt (4.5 L)
  - Without filter: 4.4 US qt (4.2 L)
- Four-wheel drive models and PreRunner
  - With filter: 5.5 US qt (5.2 L)
  - Without filter: 5.2 US qt (4.9 L)
- KohliBuilt requires the oil filter be replaced whenever the engine oil is changed!

SAE: Society of Automotive Engineers

1. ENGINE OIL VISUAL INSPECTION

Using the dipstick to visually check your engine's oil provides a quick snapshot of your engine's health. This brief inspection can reveal oil leaks, internal coolant leaks, mechanical issues, and more.

To obtain an accurate level reading, ensure the following requirements are met:

The vehicle is on level ground.
The engine is at operating temperature and turned off.
The engine has been in the off state for over 2 minutes to allow the oil to drain within the engine.

Remove the dipstick and wipe clean with a towel.
Reinstall the dipstick, ensuring it is fully seated.
Remove the dipstick and visually inspect the engine oil and its level.

CAUTION: The dipstick is located near the exhaust manifold. Use caution to avoid touching the hot exhaust manifold.

NOTICE: Exercise caution to avoid spilling engine oil on any vehicle components. Clean up any spilled engine oil.

WARNING:

CAUTION:

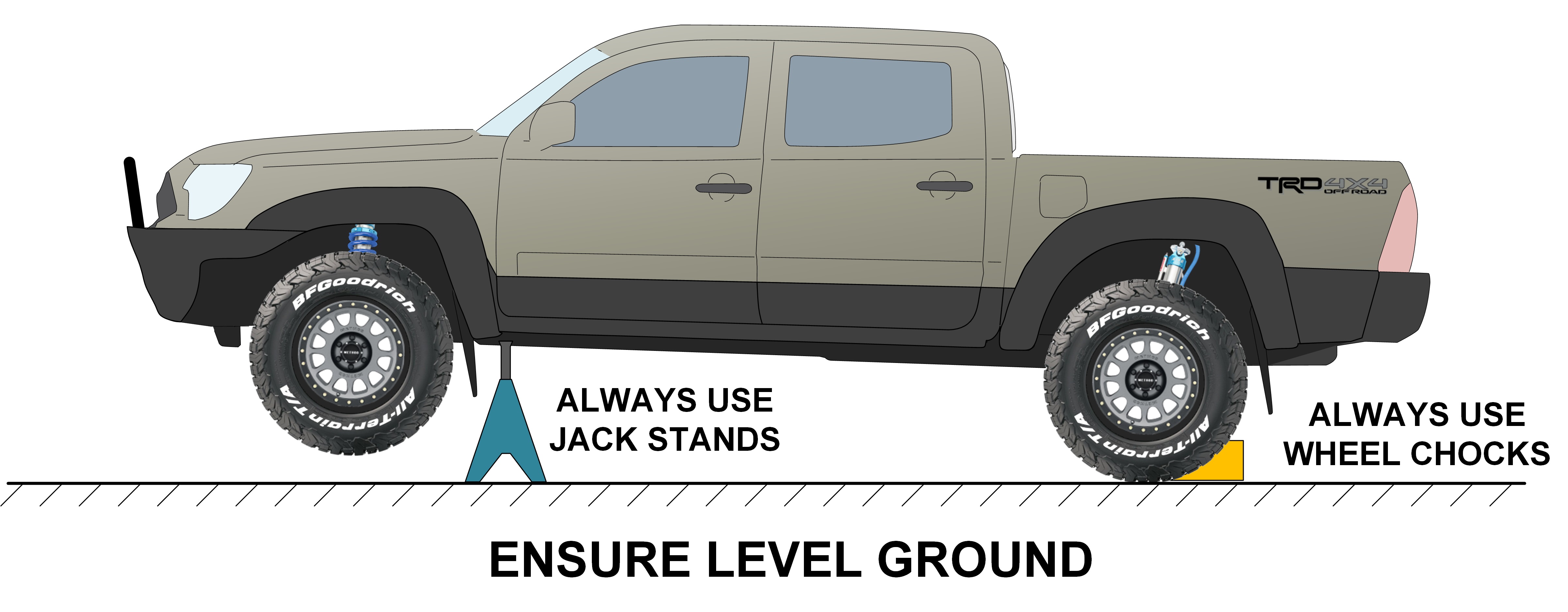

1. SAFELY LIFT & SUPPORT THE VEHICLE

It is possible to change the oil without lifting the vehicle, depending on its ground clearance and/or tire size.
If your vehicle requires support on jacks, refer to the reference graphic for lift points.

NOTICE: If removing wheel lug nuts with a wrench, loosen but DO NOT remove lugs before lifting.

CAUTION: If ONLY lifting the front of the vehicle, always to use proper jack stands and wheel chocks.

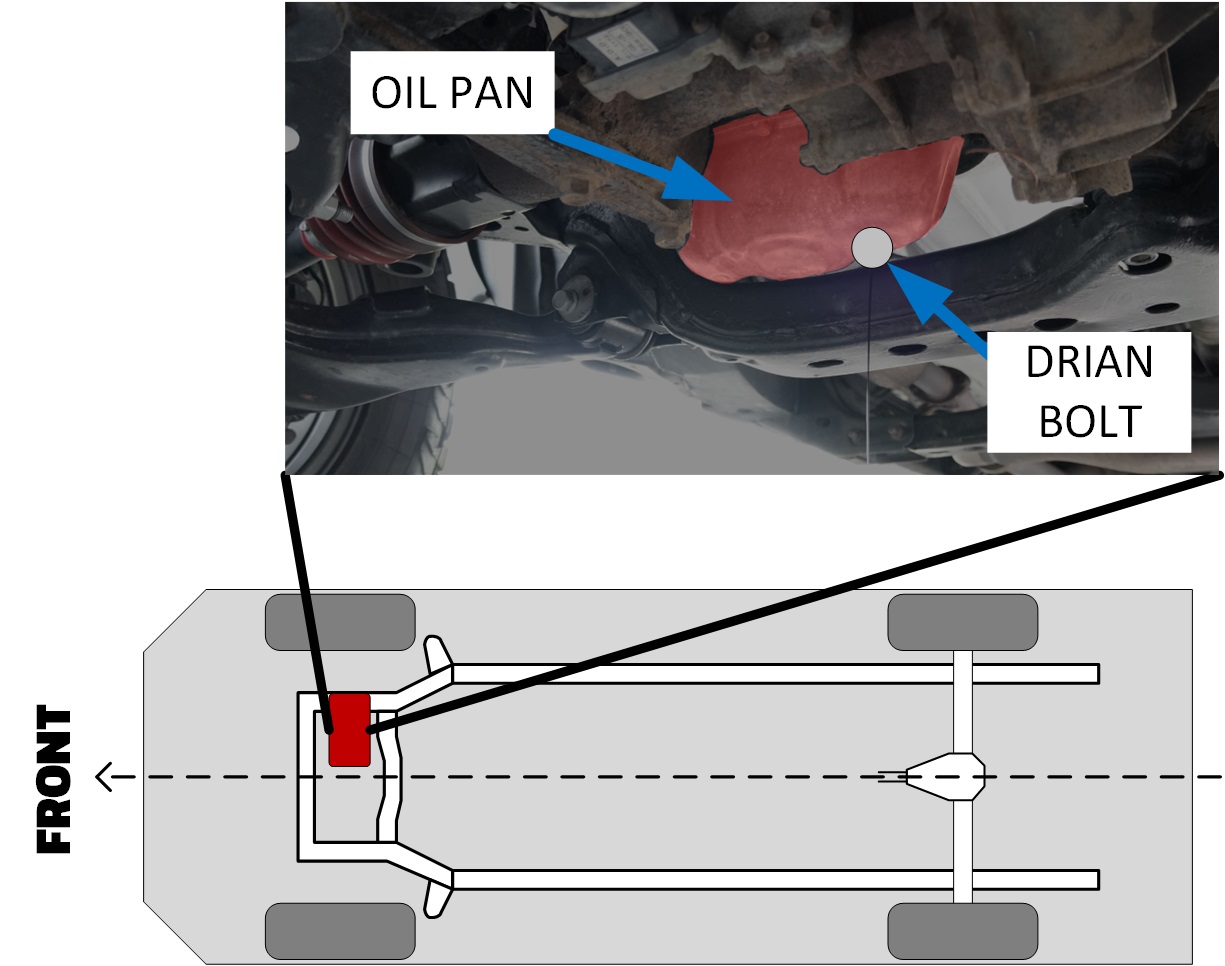

2. LOCATE ENGINE OIL DRAIN BOLT

Locate the engine's oil pan and drain bolt, and ensure that there is enough clearance to complete the oil change.

PRO TIP: Aftermarket skidplates can cover and protect the oil pan sump where the drain plug is located. Removal of the skidplate might be required.

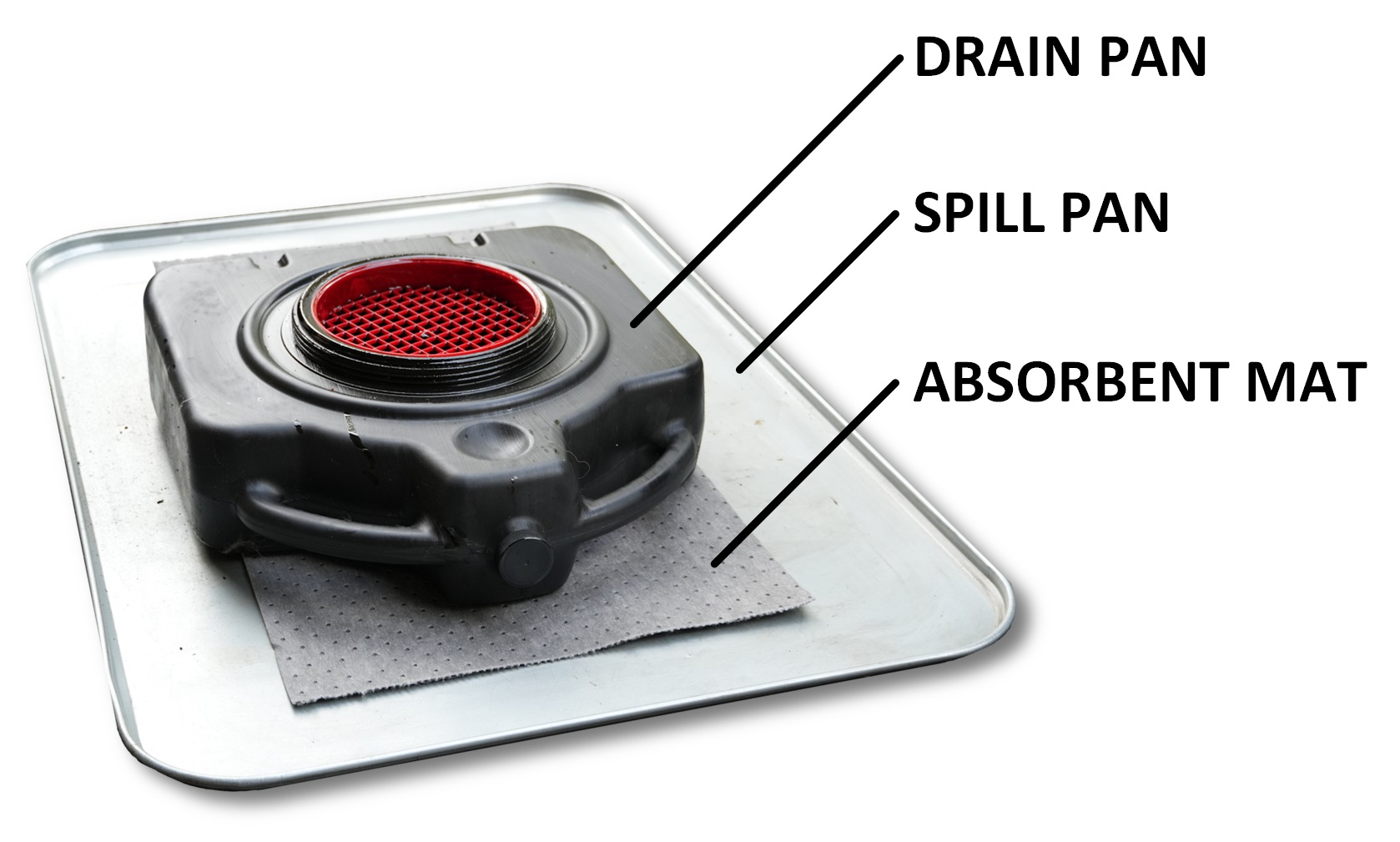

3. READY OIL DRAIN PAN

Drain pan.
Spill pan.
Absorbent pan.

USED OIL

APPEARANCE: Liquid, black and viscous (thick), petroleum odor.
PHYSICAL HAZARDS: Combustible liquid.
HEALTH HAZARDS:

May be harmful if inhaled.
May be harmful if absorbed through skin.
May be harmful or fatal if swallowed.
May irritate the respiratory tract (nose, throat, and lungs), eyes, and skin.
Suspect cancer hazard. Contains material which can cause cancer. Risk of cancer depends on duration and level of exposure.
Contains material which can cause birth defects.
Contains material which can cause central nervous system damage.

ENVIRONMENTAL HAZARDS: Product may be toxic to fish, plants, wildlife, and/or domestic animals.

SDS ID: 81451

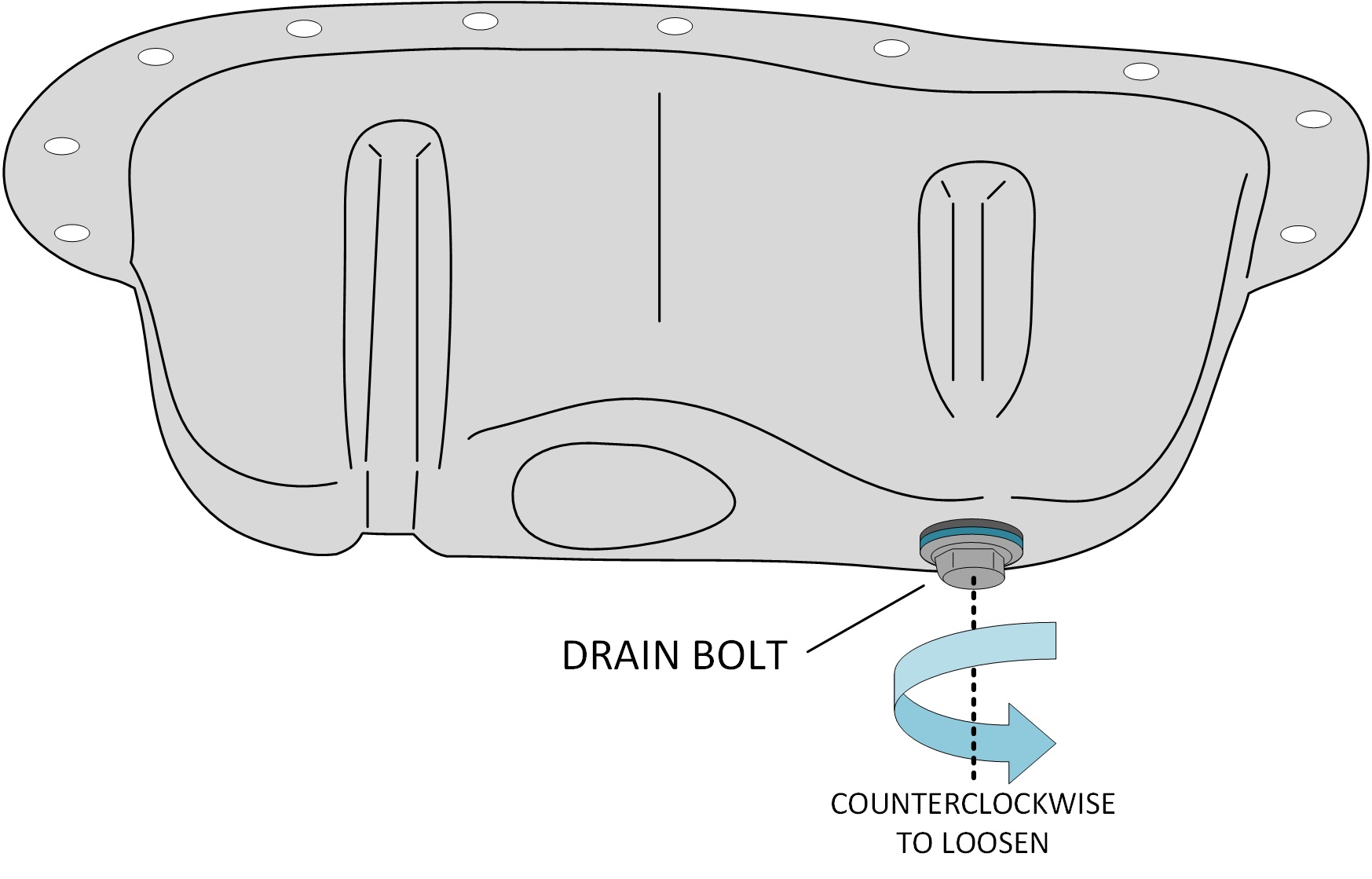

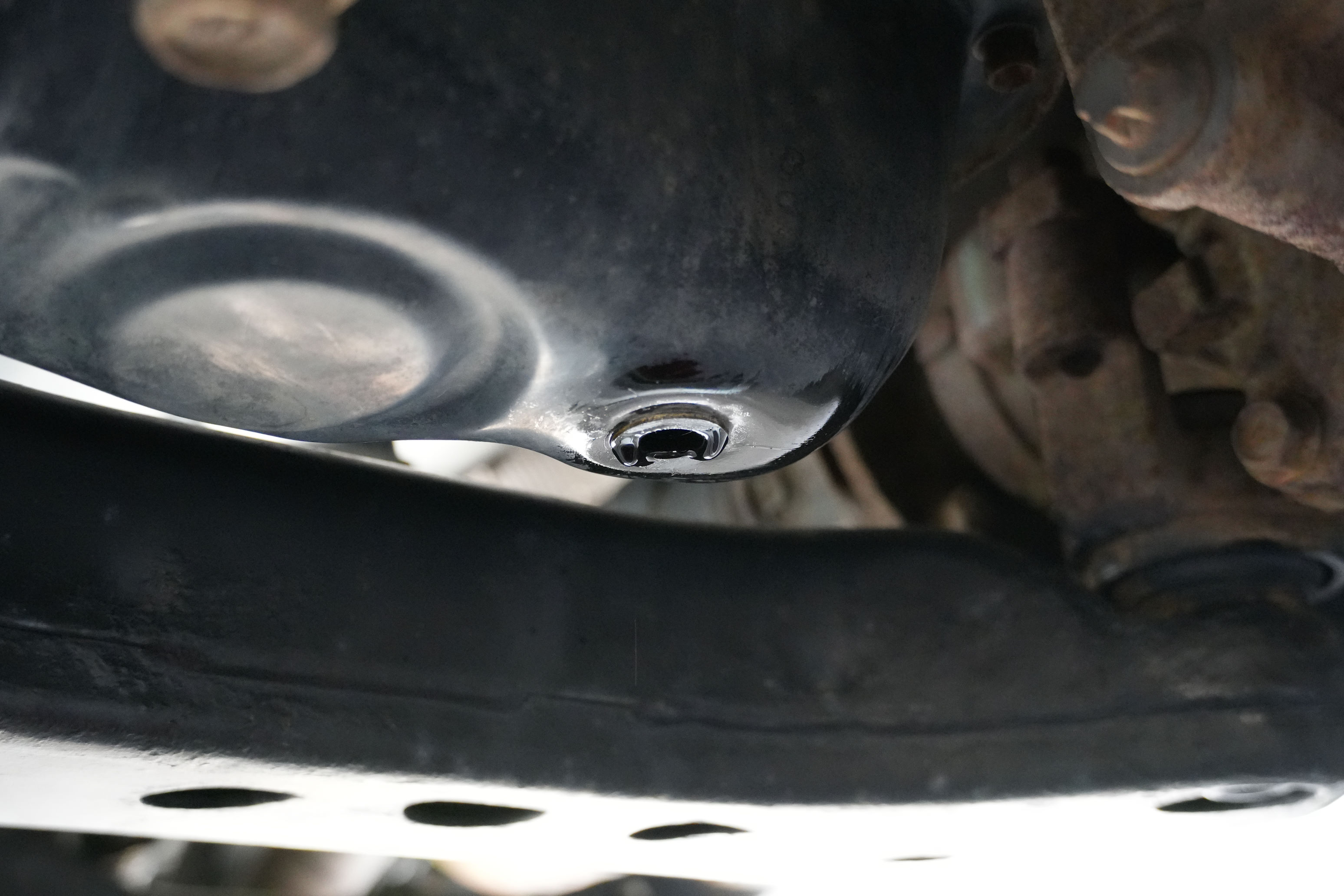

4. REMOVE DRAIN PLUG

PRO TIP: "Righty Tighty, Lefty Loosy"

CAUTION: Motor oil may be hot — handle with care!

NOTICE: Dispose of used motor oil properly. Avoid skin contact and prevent environmental contamination.

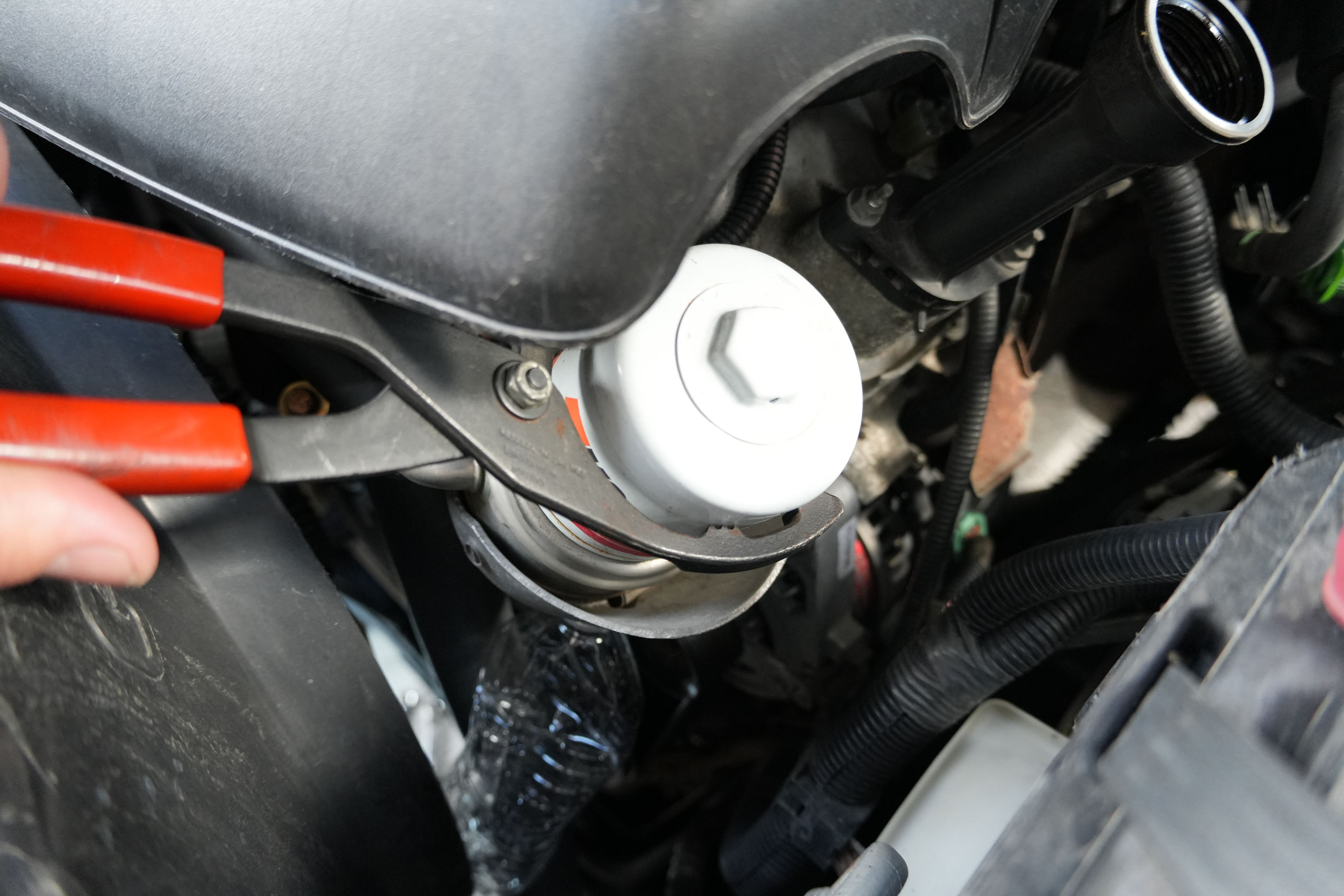

5. REMOVE OIL FILTER

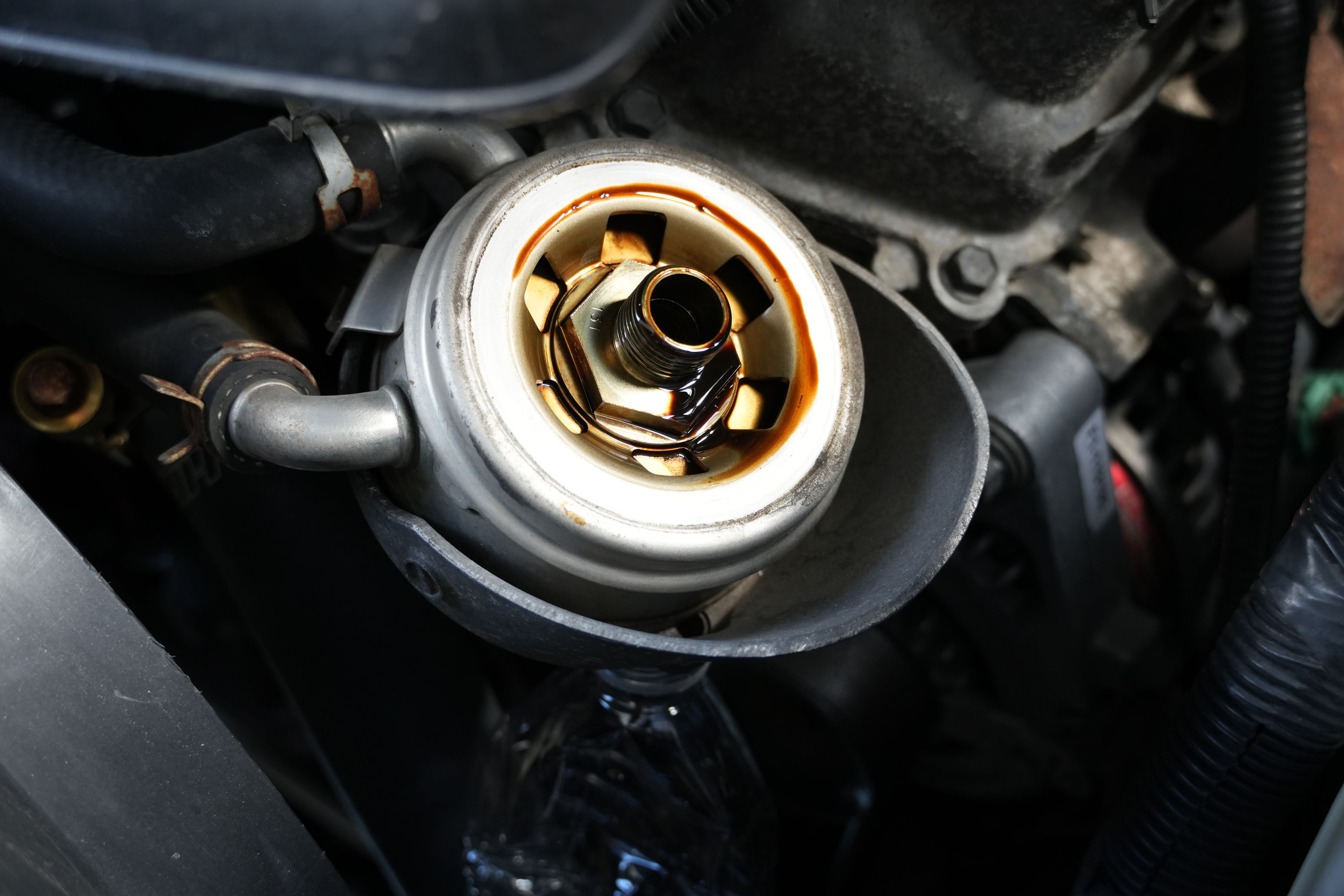

Pro Tip: The oil filter sits at the front upper portion of the engine. When you remove it, oil can drain from the filter housing into the engine bay. Toyota provides a built‑in catch can with a drain nipple; attach a 5/16" ID hose to that nipple and route the hose to a drain pan beneath the vehicle. A 3 ft hose gives good reach without excess slack.

O'Reilly Auto Parts: Gates 5/16 ID Hose

6. INSTALL NEW OIL FILTER

Verify that the old filter’s gasket has been completely removed from the engine mounting surface. A stuck gasket can cause leaks and improper sealing.
Before installing the new oil filter, apply a small amount of fresh engine oil to its gasket. This helps create a proper seal and makes removal easier during the next oil change.

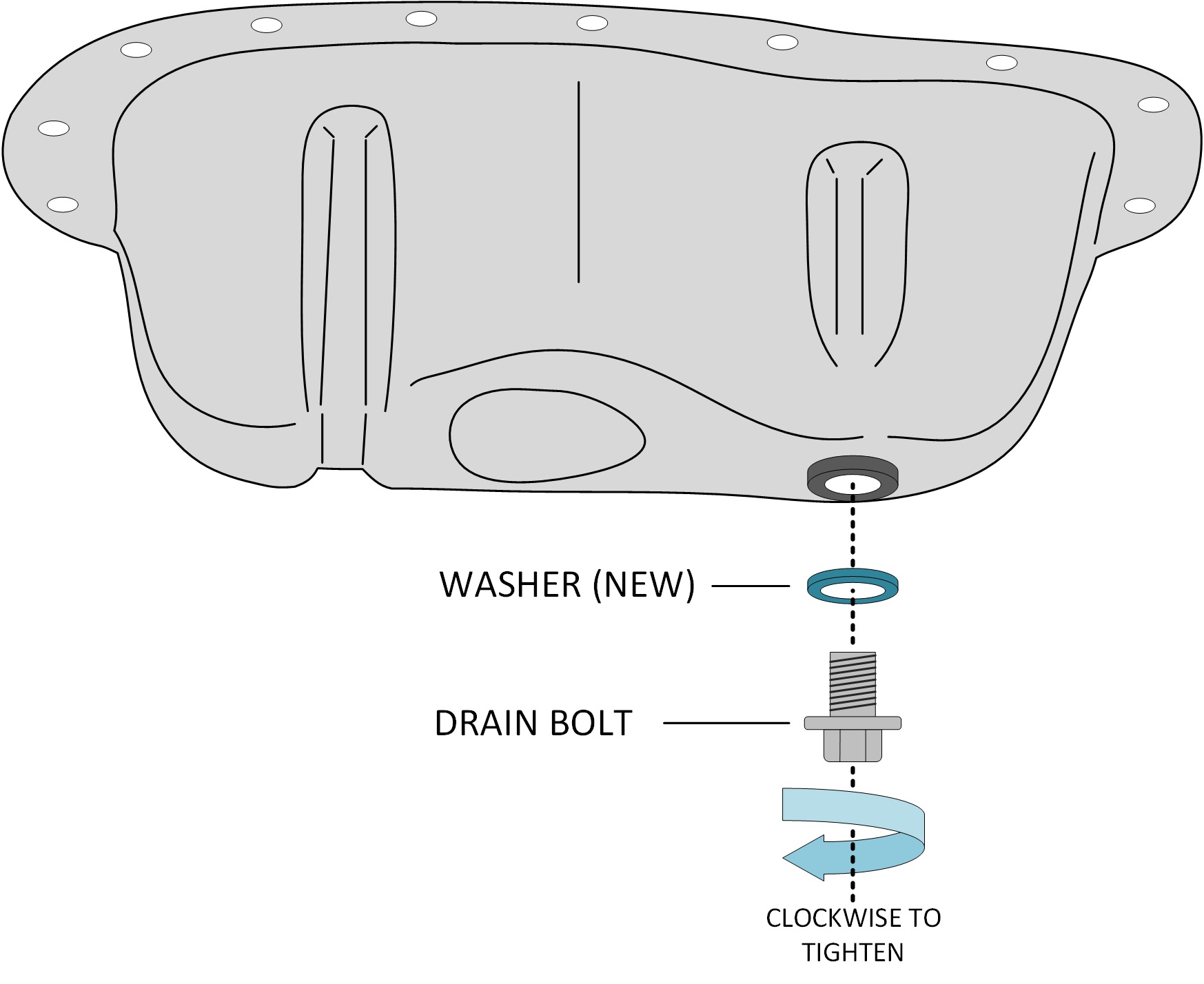

7. INSTALL DRAIN BOLT

Always install with a new drain bolt washer.
Toyota OEM Torque: 30 ft·lbf [2]

8. IF SKID PLATE WAS REMOVED, REINSTALL

9. REMOVE VEHICLE FROM JACK STANDS AND LOWER ONTO LEVEL GROUND

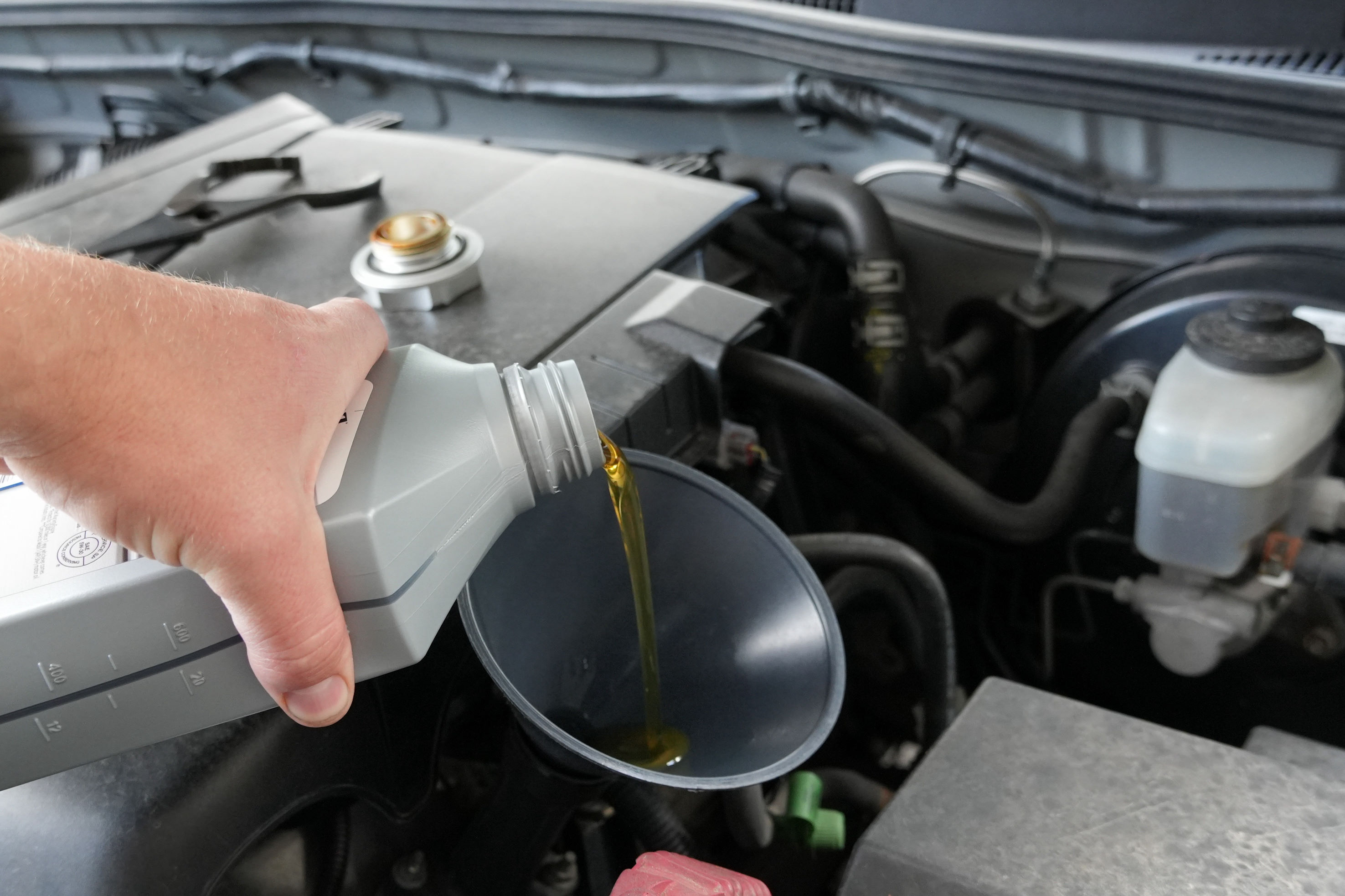

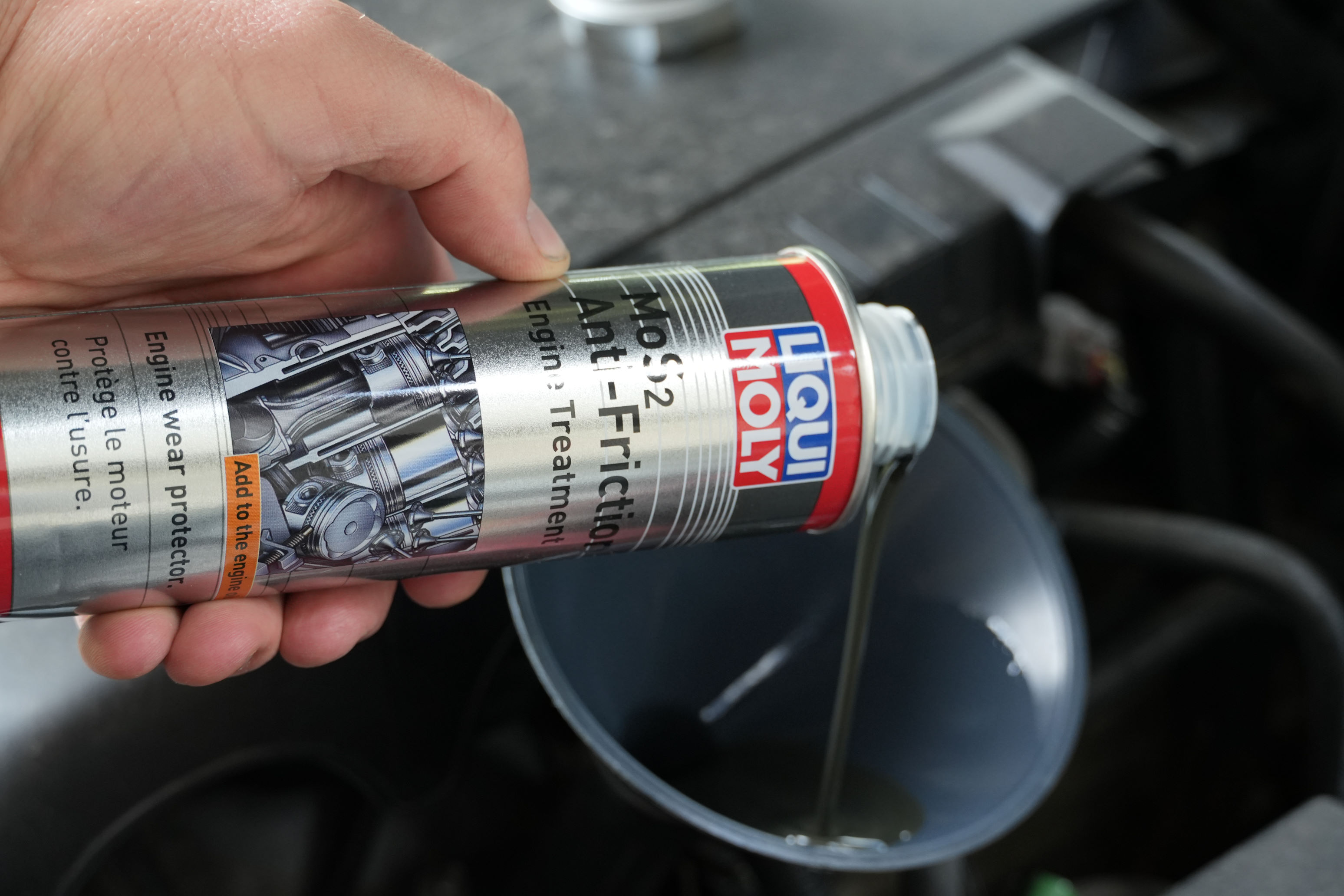

10. ADD ENGINE OIL

Add the manufacturer’s specified oil capacity.
2005 Toyota Tacoma, 4WD, 4.0L 6 cycles 1GR-FE

Viscosity: SAE 5W-30 (All TEMPS)
Capacity: 5.5 US qt (with filter)

PRO TIP: If unsure, consult Amsoil.com for the manufacturer-recommended engine oil viscosity and capacity for your vehicle.

11. CHECK VEHICLE FOR OIL LEAKS

12. CHECK ENGINE OIL LEVEL

13. RESET ENGINE OIL REPLACEMENT REMINDER LIGHT

REFERENCES:

[1] Toyota Motor Sales, U.S.A., Inc. (2005). 2005 Toyota Tacoma owner’s manual (OM35862U).
[2] Toyota Motor Corporation. (2004). 2005 Toyota Tacoma Repair Manual: Pub. No. RM1162U3 (Vol. 3).
